Settings in CATIA V5

SETTINGS IN CATIA V5

Now we will see how to do settings in catia V5

Increasing and decreasing the size of planes
i)Open catia software
ii)goto TOOLS--->Options

left side you will found one tree. In that goto

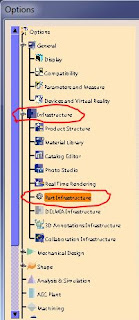

Infrastructure-->Part Infrastructure

Now Click on Display

Increase the axis system display size

Changing between axis system and plane system

In Catia you can do your work By using plane system or Axis system. By default Plane system is in active. If you want to switch to axis system Do the following procedure.

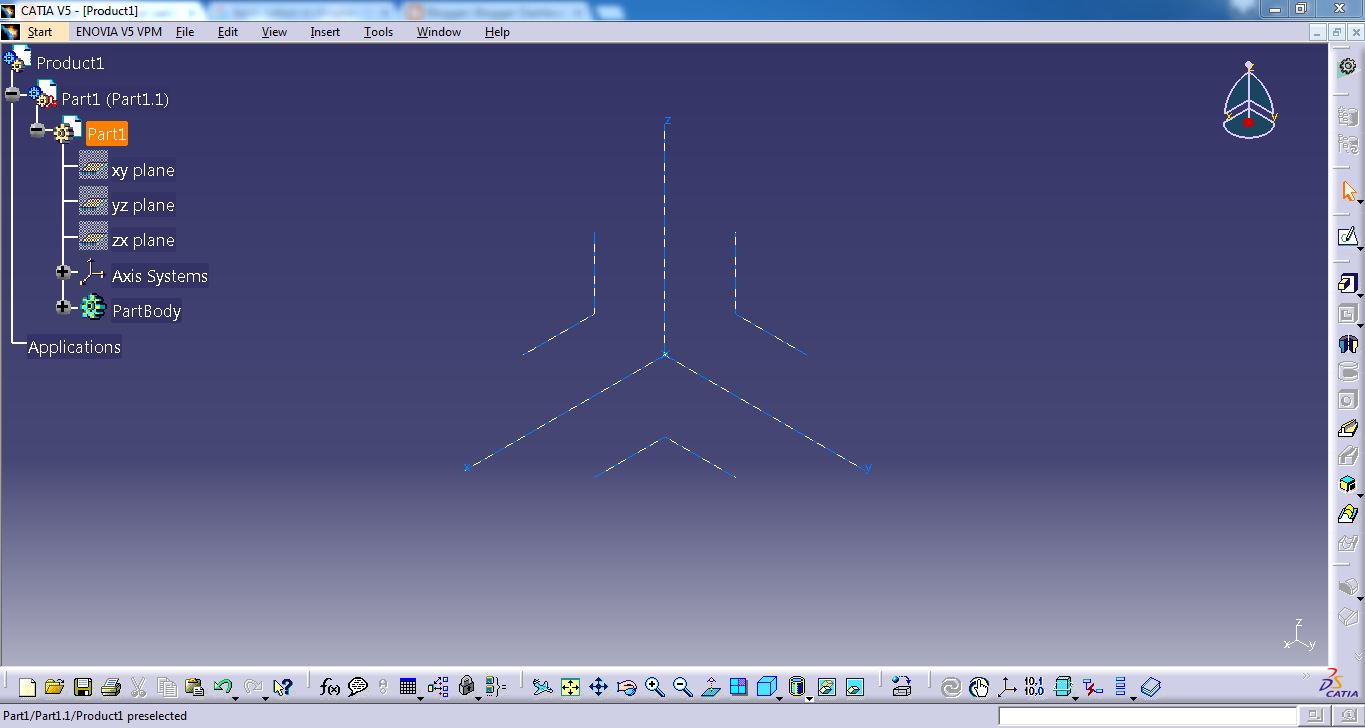

Select the Plane In product tree.

  Right click on selected plane-->click Hide/show

Do the same procedure for three planes.

Now click on the Axis system Icon.

by default you will find this icon at Right side Bottom corner

After clicking Axis system Icon one window will appear.Now right click on origin blank--->select create point

In point type select Coordinates.Now give x,y,z coordinates as 0,0,0. click ok

Now you Can Do your work using Axis System.

If you have any doubts please mention them in coments.

Thank you..
